I am going to demonstrate a straightforward anomaly detection procedure using a limited toolset: SQLite.

## Overview

Given the limited toolset, the algorithm must use nothing more than fundamental statistics (avg, variance, z-score) to identify atypical, anomalous events. We will be taking a step-by-step approach to build up the SQL query incrementally.

So, imagine you are monitoring some thing, taking multiple observations of various metrics. This could be:

- Account balances
- Heart rate and blood pressure of a patient
- CPU and memory utilization of a server

The goal is to identify when a anomaly, an outlier, an oddball occurs.

## The dataset

This exact method imposes some requirements on the dataset. The dataset we’ll be using is stored in a SQLite table with the following columns:

`ts`

`group_name`

`metric`

`value`

`ts`

is for timestamp, and it is expressed in unix time. That is, the
number of seconds since January 1, 1970. This allows for easy date
arithmetic and efficient date comparisons.

In this dataset, there are two groups and two metrics, with an
observation recorded in the `events`

table every five minutes. There is
one row for each observation, so four rows for each observation period.

```
SELECT
datetime(ts, 'unixepoch', 'localtime') as ts_local,
ts,
group_name,
metric,
value
FROM events
```

Top 8 rows:

ts_local | ts | group_name | metric | value |
---|---|---|---|---|

2018-12-22 06:00:00 | 1545458400 | Group A | Metric 1 | 222.24127 |

2018-12-22 06:00:00 | 1545458400 | Group B | Metric 1 | 252.97452 |

2018-12-22 06:00:00 | 1545458400 | Group A | Metric 2 | 34.57067 |

2018-12-22 06:00:00 | 1545458400 | Group B | Metric 2 | 38.94976 |

2018-12-22 06:05:00 | 1545458700 | Group A | Metric 1 | 253.60885 |

2018-12-22 06:05:00 | 1545458700 | Group B | Metric 1 | 200.50453 |

2018-12-22 06:05:00 | 1545458700 | Group A | Metric 2 | 32.67214 |

2018-12-22 06:05:00 | 1545458700 | Group B | Metric 2 | 35.75465 |

If you’d like, skip the explanation; get to the query.

## Essential statistics

To compute the Z-score for each point, we will need the window average
and variance. We will build up to these stats using the window count
`mov_n`

, window sum `mov_sum`

, and window sum squared `mov_sum_sq`

.

Since SQLite lacks functions for these window operations, they will
instead be calculated after performing a self-join of the table on the
`ts`

column. Here you can define the window size, in seconds, by
subtracting a number of seconds from the timestamp of each point. Each
point then has a unique set of observations from which to calculate the
average and variance for. In this example, the window size is 10800
seconds, or 3 hours.

```
SELECT
t1.ts,
t1.group_name,
t1.metric,
t1.value,
count(t2.value) AS mov_n,
sum(t2.value) AS mov_sum,
sum(t2.value*t2.value) AS mov_sum_sq
FROM events t1 LEFT JOIN events t2
ON t1.group_name = t2.group_name
AND t1.metric = t2.metric
AND t2.ts >= t1.ts - 10800
AND t2.ts < t1.ts
GROUP BY t1.ts,
t1.group_name,
t1.metric,
t1.value
```

Top 12 rows:

ts | group_name | metric | value | mov_n | mov_sum | mov_sum_sq |
---|---|---|---|---|---|---|

1545458400 | Group A | Metric 1 | 222.24127 | 0 | NA | NA |

1545458400 | Group A | Metric 2 | 34.57067 | 0 | NA | NA |

1545458400 | Group B | Metric 1 | 252.97452 | 0 | NA | NA |

1545458400 | Group B | Metric 2 | 38.94976 | 0 | NA | NA |

1545458700 | Group A | Metric 1 | 253.60885 | 1 | 222.24127 | 49391.182 |

1545458700 | Group A | Metric 2 | 32.67214 | 1 | 34.57067 | 1195.131 |

1545458700 | Group B | Metric 1 | 200.50453 | 1 | 252.97452 | 63996.105 |

1545458700 | Group B | Metric 2 | 35.75465 | 1 | 38.94976 | 1517.083 |

1545459000 | Group A | Metric 1 | 231.62960 | 2 | 475.85012 | 113708.631 |

1545459000 | Group A | Metric 2 | 41.10389 | 2 | 67.24281 | 2262.600 |

1545459000 | Group B | Metric 1 | 225.97594 | 2 | 453.47904 | 104198.170 |

1545459000 | Group B | Metric 2 | 36.27989 | 2 | 74.70440 | 2795.478 |

Notice how the first few rows are missing some values. Also, `mov_n`

,
the number of observations in the moving window, is 0. This is because
each observation computes the stats for a window of observations that
occured before it. Starting out, there are no past events to aggregate.
As we proceed, the window grows incrementally larger until a “complete”
window is obtained. See the *last* 12 observations:

ts | group_name | metric | value | mov_n | mov_sum | mov_sum_sq |
---|---|---|---|---|---|---|

1545543900 | Group A | Metric 1 | 247.15789 | 36 | 8354.390 | 1950818.35 |

1545543900 | Group A | Metric 2 | 28.81865 | 36 | 1236.088 | 42684.47 |

1545543900 | Group B | Metric 1 | 221.85380 | 36 | 8209.607 | 1880259.07 |

1545543900 | Group B | Metric 2 | 36.27406 | 36 | 1235.929 | 42750.46 |

1545544200 | Group A | Metric 1 | 211.70171 | 36 | 8367.339 | 1957051.38 |

1545544200 | Group A | Metric 2 | 37.93123 | 36 | 1230.194 | 42309.99 |

1545544200 | Group B | Metric 1 | 222.93765 | 36 | 8212.017 | 1881322.27 |

1545544200 | Group B | Metric 2 | 37.95745 | 36 | 1242.648 | 43192.78 |

1545544500 | Group A | Metric 1 | 224.19434 | 36 | 8362.074 | 1954794.53 |

1545544500 | Group A | Metric 2 | 36.77061 | 36 | 1234.598 | 42624.71 |

1545544500 | Group B | Metric 1 | 212.60191 | 36 | 8198.724 | 1875218.90 |

1545544500 | Group B | Metric 2 | 34.03929 | 36 | 1240.425 | 43019.12 |

With the building blocks for average and variance, we compute them and derive the Z-score for each point.

### Average

What is typical.

$$ \bar{X}=\frac {\Sigma x} {N} $$

To SQL:

```
mov_sum/mov_n AS mov_avg
```

### Variance

The query below uses the computational formula for variance.

$$ \sigma^2=\frac{ \Sigma{x^2}- \frac{ (\Sigma{x})^2 } N } {N-1} $$

To SQL:

```
( mov_sum_sq - (mov_sum*mov_sum)/mov_n ) / (mov_n - 1) AS mov_var
```

### Z-score

From the stats above, we compute a Z-score. The Z-score is defined as number of standard deviations from the window average the current point is. In other words, it tells us how typical a new point is given past data. A threshold value is compared to the Z-score to classify points.

$$ z=\frac {x-\bar{X}} {\sigma} $$

This formula requires the standard deviation, *σ*, but we haven’t
computed that. We have the variance, *σ*^{2}, so we take the
square root of variance to get the std. dev., right? Well, SQLite
doesn’t have a square root `sqrt()`

function. Are we doomed? Somewhat,
but we will persevere. Sure, we could write a SQLite UDF, but let’s
instead keep this organic and work with what we’ve got. Square
everything to make use of the variance:

$$ z^2=\frac {(x-\bar{X})^2} {\sigma^2} $$

This is translated into SQL as:

```
((value - (mov_sum/mov_n)) * (value - (mov_sum/mov_n))) / -- (value - mov_avg)^2 /
((mov_sum_sq - (mov_sum*mov_sum/mov_n)) / (mov_n - 1)) -- mov_var
```

Note that this is *not* the Z-score; this is the square of the Z-score.
So what do we do to get the real Z-score without a `sqrt()`

function?
Beats me. But we don’t need the real Z-score; we can just square the
threshold to keep everything consistent.

### Threshold

Again, a threshold is compared to the Z-score to decide whether a given point is an anomaly. This is the number of allowed standard deviations, and is a number of your choosing.

A threshold of 3 is a good starting point. Given this, a value is an
anomaly if `mov_z_sq > 3*3`

.

That is:

$$ \frac {(x-\bar{X})^2} {\sigma^2}=z^2>\text{threshold}^2 $$

```
CASE
WHEN
((value - (mov_sum/mov_n)) * (value - (mov_sum/mov_n))) /
((mov_sum_sq - (mov_sum*mov_sum/mov_n)) / (mov_n - 1)) > 3*3
THEN 1
ELSE 0
END is_anomaly
```

Remember to square the Z-score threshold.

## The query

All together, the query starts by performing the non-equi self-join of
itself, the window size is 10800 seconds (3 hrs). From this, it
calculates the essential stats, the number of observerations `mov_n`

,
moving sum `mov_sum`

, moving sum^{2} `mov_sum_sq`

. Built atop
that are statements that use these stats to return the moving average
`mov_avg`

, moving variance `mov_var`

, and moving *z*^{2}
`mov_z_sq`

. Finally, the threshold value `3`

is squared and compared to
`mov_z_sq`

to determine if the current point is atypical from previous
points in the moving window.

```
SELECT
ts,
group_name,
metric,
value,
mov_n,
mov_sum / mov_n AS mov_avg,
(mov_sum_sq - (mov_sum*mov_sum/mov_n)) / (mov_n - 1) AS mov_var,
((value - (mov_sum/mov_n)) * (value - (mov_sum/mov_n))) / ((mov_sum_sq - (mov_sum*mov_sum/mov_n)) / (mov_n - 1)) AS mov_z_sq,
CASE
WHEN
((value - (mov_sum/mov_n)) * (value - (mov_sum/mov_n))) /
((mov_sum_sq - (mov_sum*mov_sum/mov_n)) / (mov_n - 1)) > 3*3 THEN 1
ELSE 0
END is_anomaly
FROM (
SELECT
t1.ts,
t1.group_name,
t1.metric,
t1.value,
count(t2.value) AS mov_n,
sum(t2.value) AS mov_sum,
sum(t2.value*t2.value) AS mov_sum_sq
FROM events t1 LEFT JOIN events t2
ON t1.group_name = t2.group_name
AND t1.metric = t2.metric
AND t2.ts >= t1.ts - 10800
AND t2.ts < t1.ts
GROUP BY t1.ts,
t1.group_name,
t1.metric,
t1.value
) as t
```

Top 12 rows:

ts | group_name | metric | value | mov_n | mov_avg | mov_var | mov_z_sq | is_anomaly |
---|---|---|---|---|---|---|---|---|

1545543900 | Group A | Metric 1 | 247.15789 | 36 | 232.06639 | 344.148185 | 0.6617886 | 0 |

1545543900 | Group A | Metric 2 | 28.81865 | 36 | 34.33579 | 6.925934 | 4.3949084 | 0 |

1545543900 | Group B | Metric 1 | 221.85380 | 36 | 228.04465 | 231.485998 | 0.1655677 | 0 |

1545543900 | Group B | Metric 2 | 36.27406 | 36 | 34.33135 | 9.124584 | 0.4136195 | 0 |

1545544200 | Group A | Metric 1 | 211.70171 | 36 | 232.42607 | 350.391154 | 1.2257705 | 0 |

1545544200 | Group A | Metric 2 | 37.93123 | 36 | 34.17205 | 7.763974 | 1.8201274 | 0 |

1545544200 | Group B | Metric 1 | 222.93765 | 36 | 228.11157 | 230.463254 | 0.1161551 | 0 |

1545544200 | Group B | Metric 2 | 37.95745 | 36 | 34.51800 | 8.544728 | 1.3844604 | 0 |

1545544500 | Group A | Metric 1 | 224.19434 | 36 | 232.27983 | 355.812026 | 0.1837352 | 0 |

1545544500 | Group A | Metric 2 | 36.77061 | 36 | 34.29439 | 8.140444 | 0.7532325 | 0 |

1545544500 | Group B | Metric 1 | 212.60191 | 36 | 227.74235 | 229.204809 | 1.0001226 | 0 |

1545544500 | Group B | Metric 2 | 34.03929 | 36 | 34.45626 | 7.962866 | 0.0218349 | 0 |

## View the results

Create a view of the query above to easily return anomalous records.

```
SELECT *
FROM v_anomaly
WHERE is_anomaly=1
```

ts | group_name | metric | value | mov_n | mov_avg | mov_var | mov_z_sq | is_anomaly |
---|---|---|---|---|---|---|---|---|

1545459000 | Group A | Metric 2 | 41.10389 | 2 | 33.62141 | 1.802205 | 31.06619 | 1 |

1545463500 | Group B | Metric 1 | 331.15989 | 17 | 226.16311 | 376.941435 | 29.24678 | 1 |

1545477900 | Group A | Metric 1 | 390.65061 | 36 | 229.25418 | 267.418941 | 97.40825 | 1 |

1545524700 | Group A | Metric 2 | 17.13078 | 36 | 34.06429 | 9.527033 | 30.09792 | 1 |

1545525300 | Group A | Metric 1 | 119.01052 | 36 | 229.91305 | 224.341019 | 54.82444 | 1 |

1545528600 | Group B | Metric 1 | 369.99453 | 36 | 229.41003 | 254.291812 | 77.72173 | 1 |

## Visualized

Now that our original dataset is augmented with valuable statistics and
a classification, we can visualize the anomaly detection process. For
this, we will need to switch to R and import the packages `RSQLite`

and
`ggplot2`

. Also, since we’re now in R, we have a `sqrt()`

function;
sweet. Note that, while R is among the best tools for analytics, the
anomaly detection process is being done entirely in SQL; we’re just
using R for the viz.

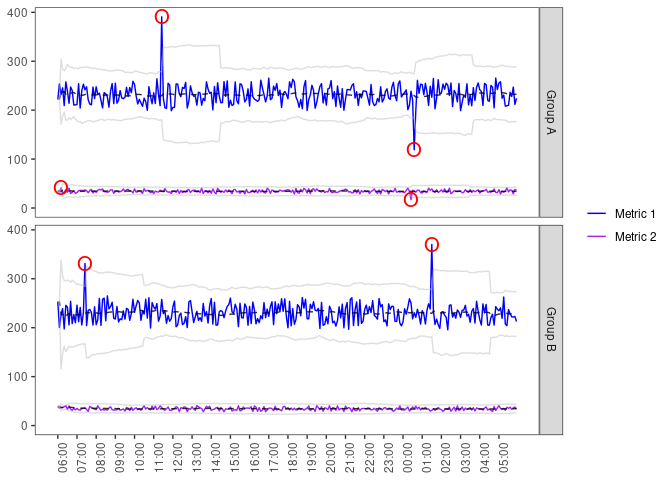

In the plot below, each group is plotted in a pane. Each group metric is plotted as a colored line. The window average is plotted as a black dashed line within each group metric. The light gray lines illustrate the define threshold which determines the classification. Notice how the threshold increases after an anomaly occurs, then drops back down after the window size (3 hrs) elapses.

```
library(RSQLite)
library(ggplot2)
library(data.table)
### Connect to and retrieve teh data
db <- dbConnect(RSQLite::SQLite(), db_name)
df_anom <- RSQLite::dbGetQuery(db, 'SELECT * FROM v_anomaly')
RSQLite::dbDisconnect(db)
### Quick prep
df_anom <- as.data.table(df_anom) # makes working with dataframes nicer.
df_anom[is.na(mov_avg), mov_avg := value]
df_anom[is.na(mov_var), mov_var := 0]
z_thresh <- 3 # define the threshold to visualize it. The classification has already been made.
df_anom[, ':=' (thresh_high = mov_avg + (sqrt(mov_var) * z_thresh),
thresh_low = mov_avg - (sqrt(mov_var) * z_thresh),
is_anomaly = as.logical(is_anomaly))]
### Visualize
ggplot(df_anom, aes(x=as.POSIXct(ts, origin='1970-01-01'), y=value)) +
geom_line(aes(group=metric, color=metric)) +
geom_line(aes(group=metric, y=mov_avg), color='black', alpha=0.8, linetype='dashed') +
geom_line(aes(group=metric, y=thresh_high), color='gray', alpha=0.5) +
geom_line(aes(group=metric, y=thresh_low), color='gray', alpha=0.5) +
geom_point(data=df_anom[is_anomaly==TRUE,], color='red', shape='O', size=5) +
facet_grid(rows=vars(group_name)) +
scale_x_datetime(date_labels='%H:%M',
breaks=unique(df_anom[ts %% 3600 == 0,]$ts) %>% as.POSIXct(origin='1970-01-01')) +
scale_colour_manual(values=c('blue', 'purple')) +
labs(x=NULL, y=NULL) +
theme_bw() +
ylim(0, NA) +
theme(axis.text.x = element_text(angle = 90),
legend.title = element_blank(),
panel.grid = element_blank())
```

## Another Approach

The above approach implements a non-equi self-join on the `ts`

column
with a window size defined *in seconds*. I felt this was the most
suitable way to describe this method of anomaly detection. However, a
faster query using windowing functions is shown below. Here, the window
size is not defined by time, but by the *number of preceding points*, so
it assumes periodic observations within the dataset. The clause
`ROWS BETWEEN 36 PRECEDING AND 1 PRECEDING`

defines the window size to
be 35 preceding observations, not including the current observation. At
5 minute intervals, this equates to a window size of
35 *p oint**s* * 5

*m** 60

**i**n**u**t**e**s*s*= 10500

**e**c**o**n**d**s*s*. The query above has a window size of 10800 seconds, but the upper bound is non-inclusive; the current point is not considered. We could have made the upper bound <= 10500 seconds and achieve the same results. Long story short, the query below will produce the same results as the query above, but much faster, though with more assumptions and less flexibility.

**e**c**o**n**d**s```
SELECT
ts,
group_name,
metric,
value,
avg(value) OVER w as mov_avg,
case
when ((value - (avg(value) OVER w)) * (value - (avg(value) OVER w))) /
(( (sum(value * value) OVER w) - ((sum(value) OVER w) * (avg(value) OVER w))) /
( (count(*) OVER w) - 1))
> 3*3 THEN 1
ELSE 0
END as is_outlier
FROM events
WINDOW w AS (PARTITION BY group_name, metric ORDER BY ts ROWS BETWEEN 36 PRECEDING AND 1 PRECEDING)
ORDER by ts asc
```

## Parting words

While the methods are fairly simple, this process will not detect outliers that occur within the defined threshold. Tools such as R and Python offer libraries that are better suited for more advanced anomaly detection tasks. However, I hope the approach described in this post serves to demystify the fundamental aspects of anomaly detection by using a simple toolset and elementary statistics.

Until next time,

Donald
